Dashboard chat — working prototype

Requirement #77 · design 77_design.html · prototype PR obot.agent#50 · 2026-07-25 · End to end, both delivery lanes verified Parked 2026-07-26 — backlog
Evidence for the overnight build. Nothing here is merged and nothing is installed in the live workspace — the demo ran against two throwaway test sessions spawned for it.

Parked 2026-07-26 — backlog. @jwildfire's call: not confident enough that dashboard chat would get used to justify standing up a prompt-injection lane, which answers the design's D1 as not now. The prototype is merged to obot.agent main rather than reverted so a future release can pick it up, but nothing is armed — the Stop hook installs only under hooks/install.sh --with-chat and the server runs only when started by hand. Everything below still describes what was built and verified.

What it does

Type a prompt into the session hub's live dashboard; it reaches a running Claude Code session, and that session's reply streams back onto the same page. The mechanism is a file-based per-session inbox delivered by a Stop hook (working sessions) or a persistent Monitor (idle sessions), with the session's transcript JSONL tailed as the reply stream. A loopback-only Node server hosts the page and carries the channel.

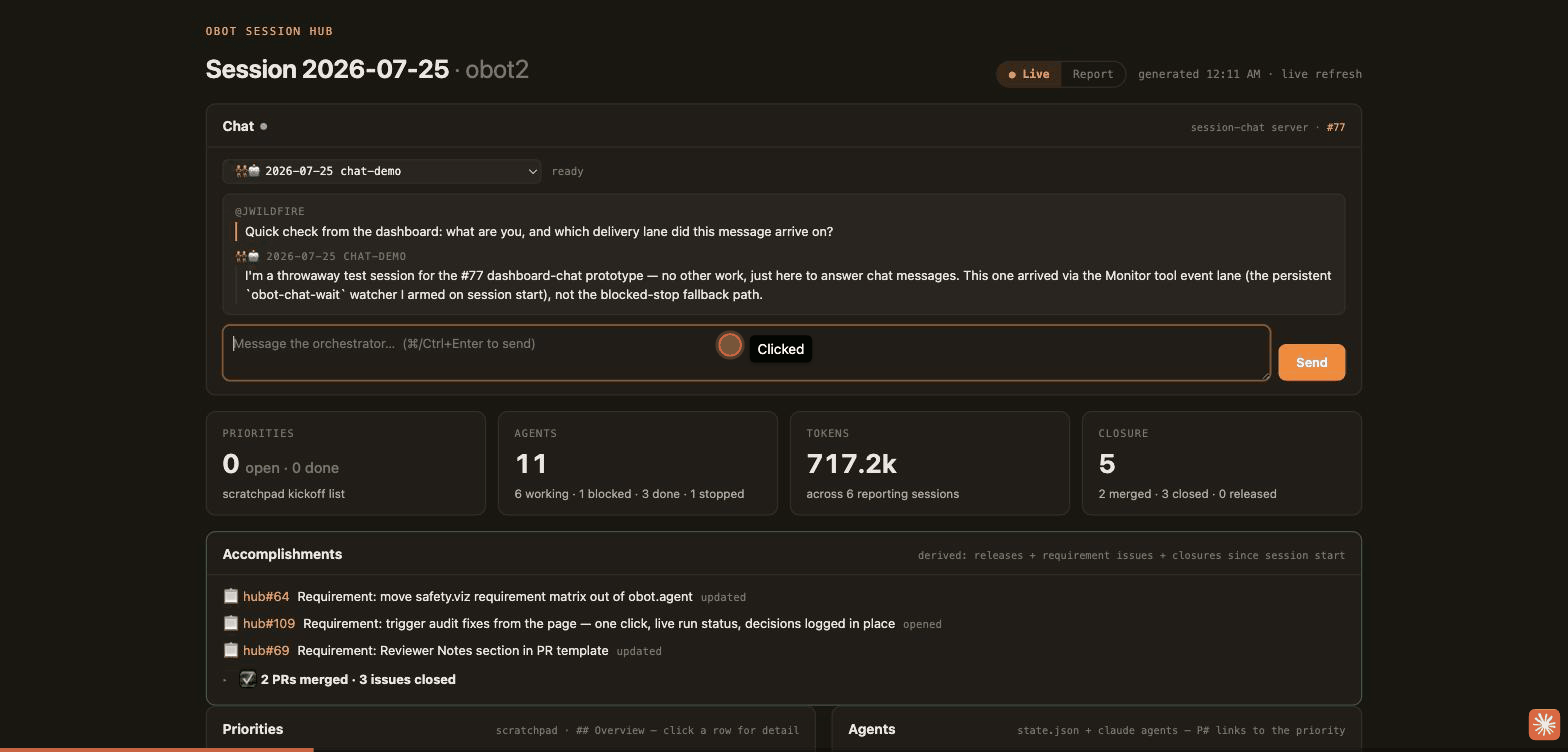

Recording: selecting a target session, typing a prompt on the dashboard, and the reply streaming back
Full round trip. Pick a target, type, send — “delivered (monitor lane) — replying” with a pulsing indicator, then the reply lands in the log. The earlier exchange is restored from the server's chat log, so a reload never loses the conversation.

Verified behaviour

ClaimEvidence
Delivery to an idle session (Monitor lane) Sent 04:10:55.408Z, claimed 04:10:56.324Z — 0.9 s; the session replied at 04:10:58 and named the lane itself: “arrived via the Monitor tool event lane … not the blocked-stop fallback path”.
Delivery to a working session (Stop-hook lane) Sent 04:13:39Z while a 2-minute shell loop was running; claimed 04:13:52Z at the turn boundary, replied 04:13:56Z: “came in via the Stop-hook lane — delivered right at a turn boundary … nothing was interrupted”.
Exactly-once delivery across both lanes Claiming is an atomic rename() into delivered/; the loser gets nothing. Unit-tested, and every claim is a file on disk with its lane and timestamp.
Loopback only lsof -nP -iTCP:4181 → TCP 127.0.0.1:4181 (LISTEN). There is no host flag to widen it.
Cross-origin and non-JSON writes refused Origin: https://evil.example → 403; form-encoded POST → 415.
Published pages stay static Chat renders only for a live render with a server attached; report mode drops it even when a chat config is passed. Both are unit-tested.
Tests 77 passing (node --test), including one that runs the real Stop hook and asserts its framing matches the JS frameMessage, so the Python copy in the hook cannot silently drift.

The honest states

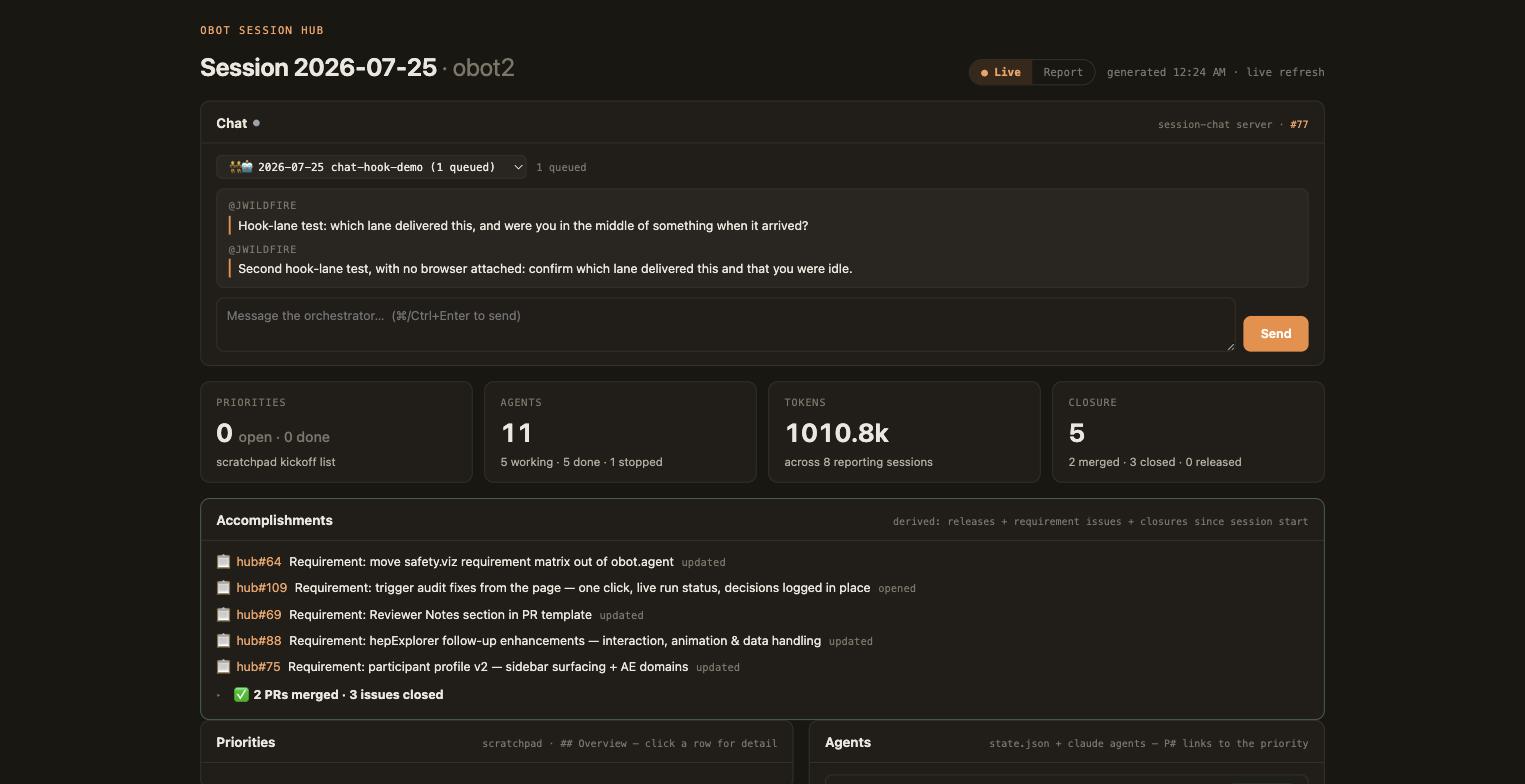

Dashboard chat panel showing a message queued against a session with no delivery lane armed
Queued, and saying so. This target is idle with no Monitor armed, so nothing will claim the message until its next turn — the selector shows (1 queued) and the status line says what it is waiting for. After 90 seconds the panel goes further and names the likely cause (a session that predates the hook, or no idle lane). This is the gap the design's D2 is about: the hook lane alone cannot reach a session that has already stopped. The reply above it is missing because that exchange predates a fix made during the demo — see below.

The other honest state is the default one: the lead session shows as “not armed”, because hooks are read at session start and the lead was running before any of this existed. The panel says so and offers to arm it rather than pretending the message will land.

A gap the demo found

The first hook-lane reply was delivered and answered correctly but never made it into the chat log: the transcript tail only ran while a browser was attached to the stream. A send now holds the watcher open for up to ten minutes (released at end_turn), so a reply that lands while the page is closed still reaches log.jsonl. Found by running it, not by reading it.

The protocol, in full

<workspace>/.claude/session-chat/<sessionId>/
  inbox/<epochMs>-<id>.json    # pending:   {id, from, text, createdAt}
  delivered/<id>.json          # claimed:   + {deliveredAt, lane: "hook"|"monitor"}
  outbox/<id>.json             # optional explicit reply: {id, text}
  log.jsonl                    # derived chat log (safe to delete)

Enqueue = write a file. Claim = atomic rename. Any producer works, so the dashboard is the first client rather than the only possible one. Messages queue, they never interrupt: one per turn boundary, oldest first, depth on the page.

Security — the part worth arguing about

This is a privilege lane. Anything that can write a file into inbox/ can make the orchestrator act, and that agent holds a GitHub App token path, merge tooling, and write access to the workspace. The inbox is a trust boundary, not a message queue.

What the prototype does about it: binds 127.0.0.1 with no option to widen; requires a JSON content type and a loopback Origin on writes; holds no credentials and never talks to GitHub; is not a daemon, so the port exists only while someone is looking at the page; and leaves every delivery auditable on disk. What it deliberately does not do is grant anything — the delivered text is framed as a chat turn, explicitly “not a work order” and “not approval for anything gated”, and the merge guard, approval gates and no-writes-outside-jwildfire rules apply exactly as before. A shared-secret token is the next increment if wanted (D5).

Try it

# from the workspace root, on the PR branch
obot.agent/hooks/install.sh                                  # registers the Stop lane (new sessions only)
node obot.agent/tools/session-hub/session-chat.mjs --open    # http://127.0.0.1:4181/

Six decisions are open in the design — starting with D1, which asks whether this should exist at all given that Remote Control already lets you type at a background session from claude.ai/code.
