open.gismo v1.0 — design & roadmap

A design decision and a phased plan to turn open.gismo into a v1.0 that replaces the safetyGraphics Shiny app: local-first compute on the modern gsm stack, with GitHub demoted from backbone to optional publisher. Includes the working Phase 0 prototype built and verified this session.

Executive summary

Decided

Architecture C+ — "local-first engine, portable site, thin app face." A four-judge panel scored it 33 against 22 (local Shiny app) and 16 (GitHub template). Compute runs where the data lives; the v0.1 GitHub lane survives unchanged as an optional publisher.

Built

A working prototype on the jwildfire/open.gismo fork: the og_*/fs_* R surface, a Reports tab on the site, and a thin app. Full pipeline runs end-to-end locally in ~20s — 13 domains, 25 metrics, 2 interactive KRI reports, 25 static charts. Tests green in new CI.

A four-phase roadmap to a v1.0 release by September 2026, ahead of the R/Pharma keynote: harden the local core, add settings & data UX, prove the publish lane, ship. Six decisions (D1–D6) are staged for your ratification.

The keynote arc this unlocks is true for real trial data: one command, your data never leaves your laptop, and the same project folder publishes to the web when you choose to share it — the safetyGraphics author replacing his own app on the stack the ecosystem moved to.

Where things stand

open.gismo v0.1.0 was further along than a sketch — and a different product than v1.0 describes

The honest read from the deep review: v0.1.0 shipped a small, well-tested R package (~800 lines of GitHub plumbing backed by ~4,800 lines of testthat + property tests), a Vite single-page pipeline explorer, four GitHub Actions, and a demo branch that is a genuine end-to-end artifact — 13 Raw_* domains snapshotted through the real gsm.mapping / gsm.kri / gsm.reporting workflows and deployed to Pages. The design doc's founding principle held: the only new R code is GitHub plumbing, and the pipeline itself is a thin layer over workr, exactly where gsm.kri's own dev branch is already heading.

But measured against the actual v1.0 goal — replace the safetyGraphics Shiny app — the front-end was a pipeline observability tool, not a safety-review app. There was no data on-ramp, no settings surface, and the interactive KRI reports the pipeline already produces were rendered nowhere. None of the three core user-facing requirements was met, though nearly every ingredient existed one shelf away.

Core requirement	Status v0.1	What was already there / what was missing
Load your own data	MISSING UX	Mapping specs define the expected domains and CheckSpec can validate against them — but there was no on-ramp and no feedback telling a user why their data didn't fit. The GitHub route was never run end-to-end; the local route meant hand-editing a script.
Customize settings	CODE-ONLY	Every knob a monitor turns (thresholds, active metrics, group level) is already well-factored as YAML meta. But the static site is read-only by construction — there was no edit surface at all.
Linked static + interactive reports	NOT SURFACED	The closest gap: gsm.kri's Report_KRI already emits self-contained interactive HTML with within-report linking, and the demo branch ran it. Nobody could see the output — the site had no report viewer, and static-chart integration hadn't started.

Two structural facts shaped the decision below: many target users cannot push clinical trial data to GitHub at all (and private-repo Pages costs money), and the pipeline's own reports render identically in a Shiny tab, an iframe on the static site, or a double-clicked local file — so the reporting layer is front-end-agnostic and the real fork is only about where data-loading and settings live.

The architecture decision

Three candidates, one panel, a clear winner

The review put three coherent architectures to a four-judge panel — one judge per lens: the safetyGraphics end-user's experience, ecosystem strategy, one-session feasibility, and v1.0 roadmap durability.

16 Candidate A

GitHub Study Template

Double down on the backbone: a "use this template" study repo; drop Raw_*.csv in, push, and an Action runs the pipeline and redeploys Pages. Maximum reuse of v0.1.

Risk: the clinical-data wall makes it structurally demo/synthetic-grade for the core audience, and its critical loop runs through an Action that has never executed end-to-end.

22 Candidate B

Local gismo app

A RunGismoApp() Shiny successor to safetyGraphicsApp(): point at a folder, validate, tweak settings, Run, browse reports — data never leaves the machine. Best UX on paper.

Risk: rebuilds the Shiny monolith the ecosystem split to escape, orphans the entire v0.1 investment, and skips the genuinely hard part (mapping arbitrary data).

33 Candidate C · chosen

Local engine, portable site

One command — og_run(project_dir) — runs the whole pipeline locally via a filesystem twin of the GitHub backend, into a project folder that is also push-to-Pages publishable. Same artifact, two targets.

Risk: the static site still can't edit settings interactively, so ease-of-use rests on the edit-YAML-and-rerun loop — a real gap, but one any later editor fills over the same files.

Lens (judge)	A · Template	B · Shiny app	C · Local-first
End-user experience	2	8	6
Ecosystem strategy	7	3	9
One-session feasibility	3	6	9
v1.0 roadmap durability	4	5	9
Total (of 40)	16	22	33

C led on three of four lenses. The one lens it lost — end-user experience — is exactly the gap the adopted hybrid closes.

The decision: C+ — C's engine, B's face, with anti-monolith riders

The panel converged on the UX judge's hybrid, ratified with the strategy judge's riders. Build C's local core exactly as specified, then put a thin interactive shell on top — strictly an editor / runner / viewer that round-trips the project folder's YAML, never a monolith holding its own state. GitHub is demoted from backbone to publisher; the v0.1 gh_* package survives as the optional publishing lane.

Sequence the four phases with explicit MakeWorkflowList + RunWorkflows (the session-verified path), not the experimental RunProject.
Promote the demo's manual GroupID coercion into a real workflow step (StandardizeResults), not script glue.
Keep the gh_* lane demonstrably green in new CI, so the two backend implementations are visibly one contract.
Any future settings UI is an editor over the same folder — layered later, never a re-architecture.

The target user cannot push trial data to GitHub at all, so any architecture whose primary loop is repo-plus-Action is disqualified on requirement #1 before UX is even discussed — while the bar this app must beat is a one-command local launch with a seconds-scale threshold-to-result loop, and every ingredient for exactly that is verified working today. UX judge — the killer argument

The lConfig seam only becomes a real architecture the day it has a second implementation — and C's ~150-line fs_lConfig is that day: it proves the swappable-backend claim, unlocks the audience whose data can never touch GitHub, and orphans none of v0.1. Strategy judge — the lConfig-seam argument

Phase 0 · this session

What was built

The prototype ships on the jwildfire/open.gismo fork, branch feat/local-first-prototype, as a draft PR (PR #1). It adds a local-first R surface, surfaces the pipeline's reports on the existing site, and puts a thin app in front — all built and verified end-to-end this session.

~20sfull pipeline

25metrics

2interactive reports

25static charts

821tests green

The new surface

Function	What it does
fs_lConfig()	Filesystem LoadData/SaveData twin of gh_lConfig — the second implementation that turns the workr lConfig seam into a real swappable-backend contract.
og_init(dir)	Scaffolds config/ + workflow/ + input/ from the demo layout; example=TRUE seeds 13 Raw_* domains from gsm.core::lSource so it works before any user data arrives.
og_validate(dir)	Runs the mapping specs' CheckSpec over the input CSVs and prints a human-readable per-domain pass/fail table — the "why did my data fail" forgiveness layer.
og_run(dir)	Runs all four pipeline phases via workr and writes the demo payload (mapped data, metrics, reporting objects, reports, status.json) into the folder.
og_view(dir)	Serves the built site over local HTTP and opens it in the browser.
og_app(dir)	Thin Shiny shell: folder picker, validation table, metric-settings editor, Run button, live Report_KRI — every action round-trips the project folder's files.
StandardizeResults()	The GroupID coercion seam, promoted from a demo script hack to a real workflow step.

On the front-end, the Vite site gains a Reports tab (between Data and Packages) that lists and iframes the interactive KRI reports and shows static-chart thumbnails — the small change that makes the platform demo like a safety-review app instead of a pipeline monitor. New CI (R-CMD-check + site-tests) runs the previously-dormant test suites on every push.

The acceptance journey

The full loop was driven end-to-end from a fresh folder, and — critically — the settings loop was proven to change real output:

Initialize ~22s

og_init(example=TRUE) scaffolds the project and writes 13 example domains (183 MB) from the bundled gsm.core data.

Validate

og_validate() reports 12/12 input domains OK against the mapping specs.

Run ~20s

og_run() produces 13 mapped domains, 25 metrics, 4 reporting objects, 2 interactive KRI reports (site + country), 25 static chart PNGs, and the site payload.

Edit data + settings

Tighten kri0001 thresholds and hand-edit the AE input CSV; separately deactivate kri0012.

Rerun → changed flags

Flagged sites move 13 → 23; the deactivated metric drops the run to 24 metrics and stale outputs are cleaned. The customize-settings requirement, demonstrated on real output.

Live acceptance testing also caught a foot-gun: an invalid Threshold/Flag combination could be written silently. A contract guard was added so the invalid combo now errors at write time with an actionable message.

Evidence

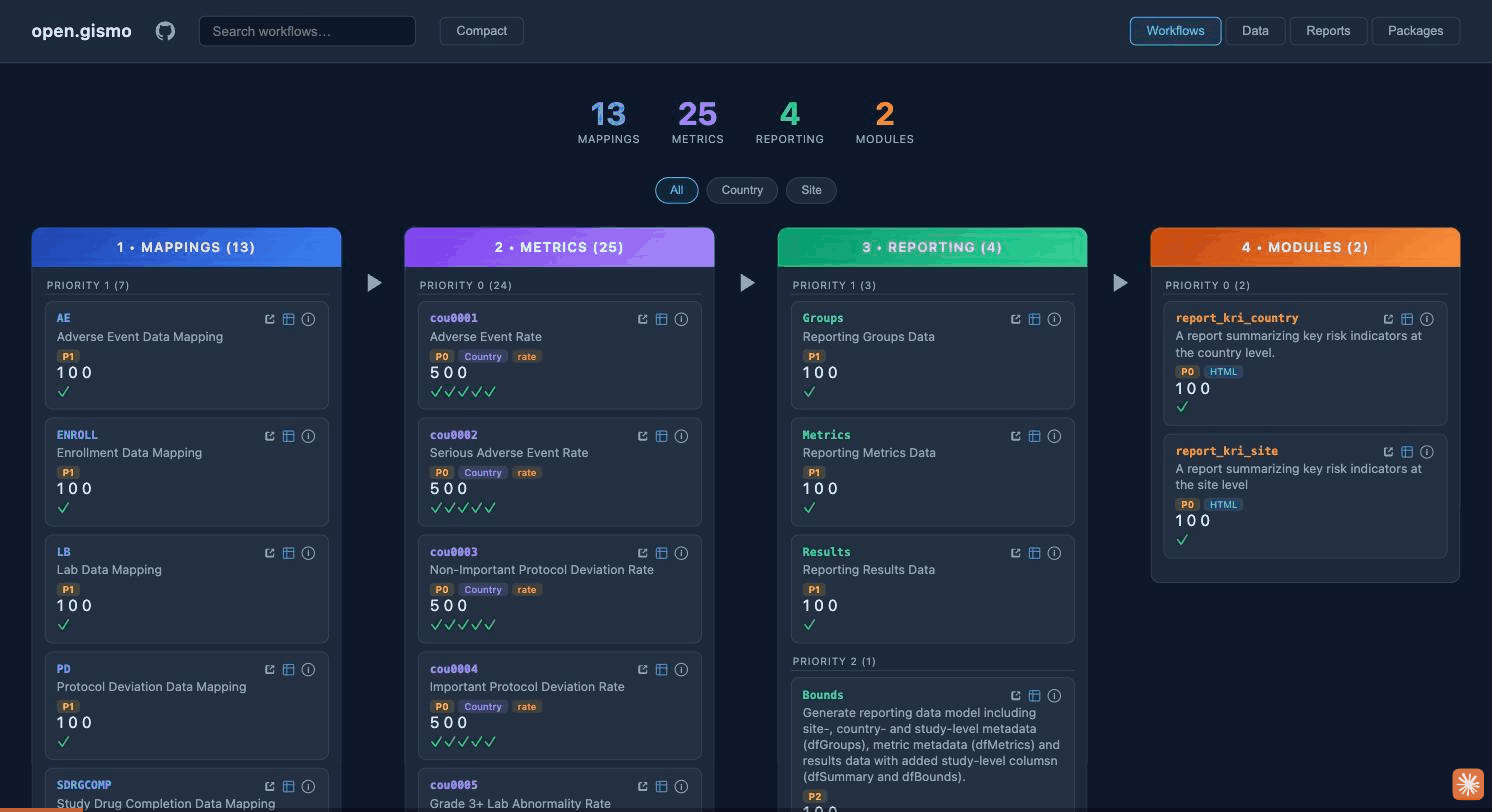

Animated walkthrough of the local-first prototype: init, validate, run, and viewing the interactive report and pipeline explorer in the browser. — The local-first loop, start to finish: scaffold a project, validate the data, run the pipeline, and open the built site — no GitHub involved.

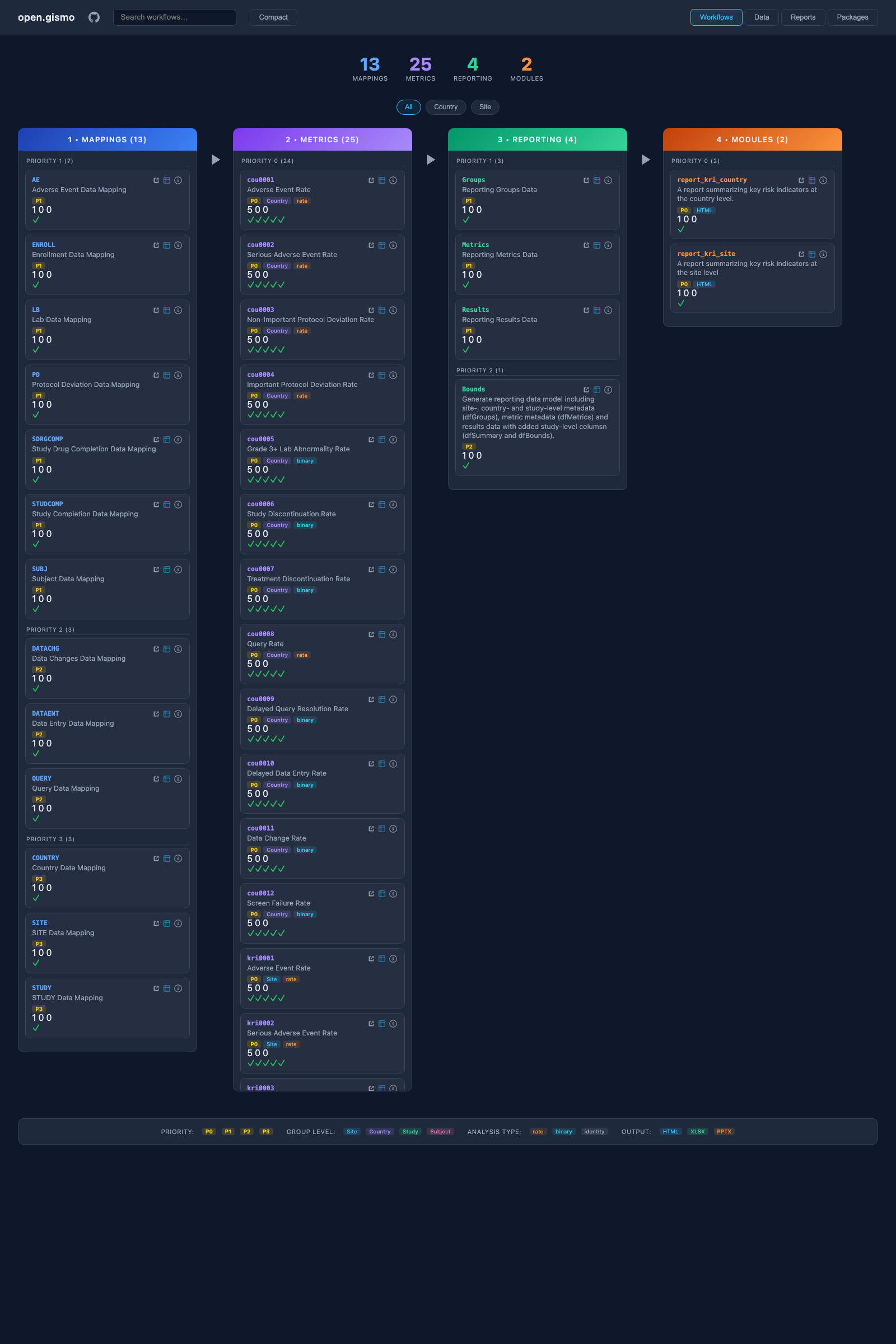

The open.gismo site pipeline explorer showing four columns: 13 mappings, 25 metrics, 4 reporting objects, 2 modules, each with green completion checks. — The pipeline explorer after a local run — 13 mappings, 25 metrics, 4 reporting objects, 2 modules, all complete. The new Reports tab sits in the top-right nav.

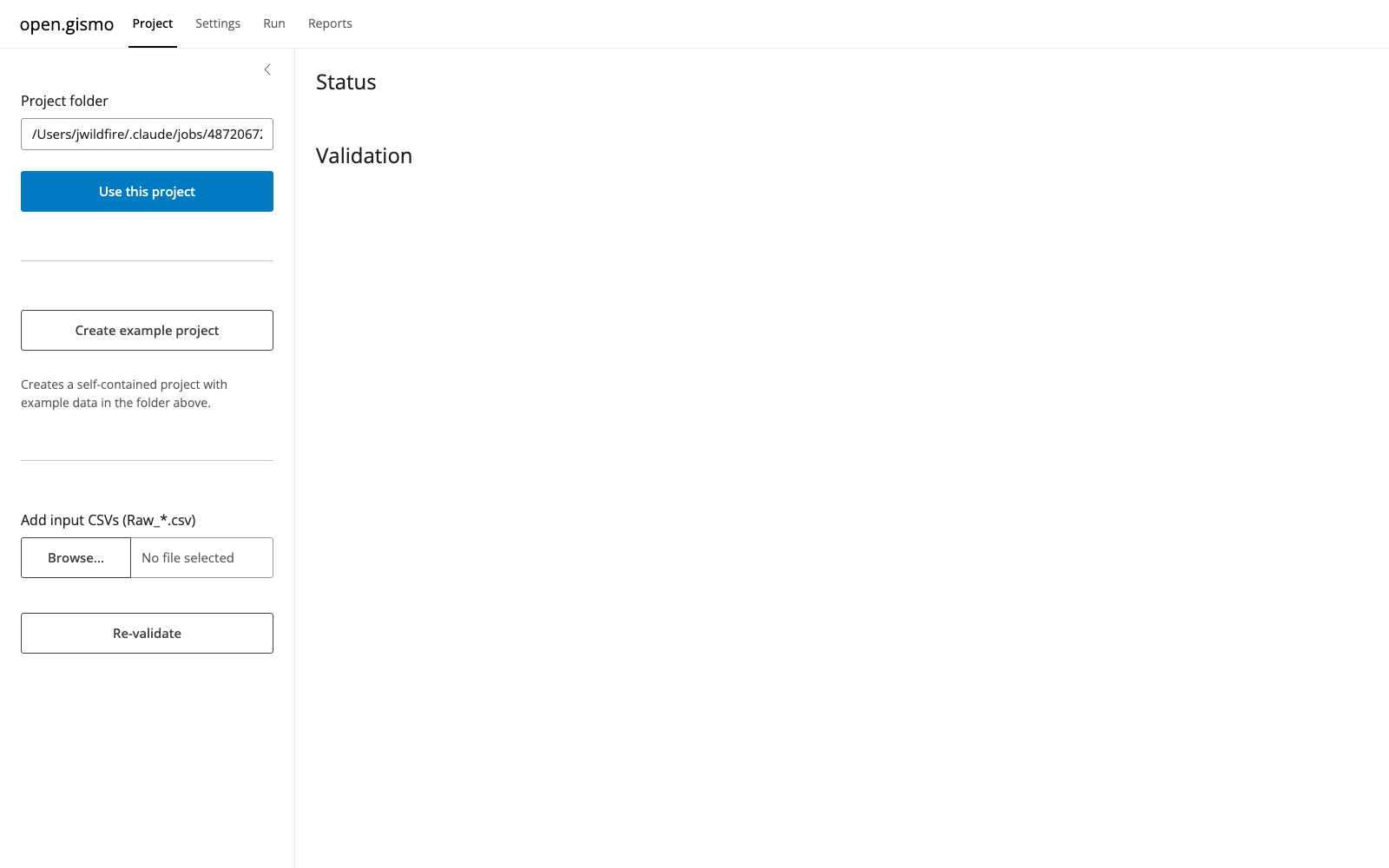

The thin Shiny app with Project, Settings, Run and Reports tabs; a project-folder picker, a Create example project button, an input-CSV uploader, and Status/Validation panels. — The thin app (og_app): pick a folder or create an example project, add input CSVs, validate, and move to Settings / Run / Reports.

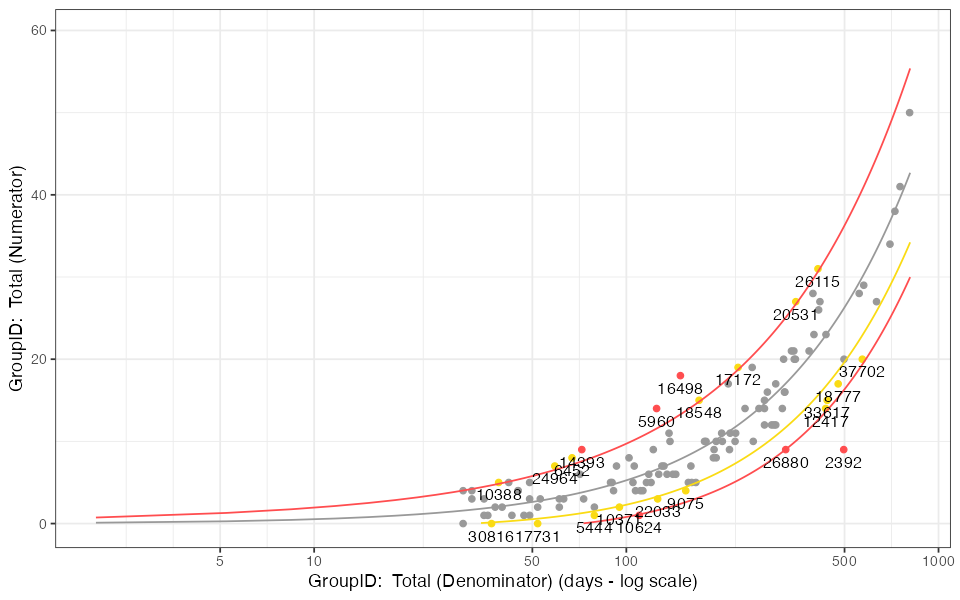

A static ggplot2 scatter chart for KRI0001 Adverse Event Rate: numerator versus denominator on a log scale, with grey, yellow and red predicted-bound curves and labeled flagged sites. — A static chart export (kri0001, Adverse Event Rate) written beside its interactive report — the cheapest honest version of "linked static + interactive," and the P005/gsm.safety plug-in point.

Interactive artifact → report_kri_site_demo.html
The real self-contained site-level KRI report produced by the run (8.4 MB) — opens standalone, with its charts and within-report linking intact.

Quality process

The prototype was built by a six-package fleet and then put through a three-lens adversarial review (R-core, integration, packaging). The review confirmed 12 findings; 11 were fixed in this PR and 1 was deferred to the roadmap — metric-phase bContinueOnError, which is spec-compliant demo-parity behavior today and becomes a graceful-degradation improvement in Phase 1. Three further candidate findings were investigated and dismissed. The R suite now runs 640 pass / 0 fail (a suite that previously never ran in CI, plus two pre-existing dev-branch test bugs fixed) and the site suite runs 181 vitest pass.

Whole-session process: a 7-reader review fleet feeding one synthesis, a 4-judge design panel, a 6-package build fleet, and a 3-lens adversarial review — the decision, the code, and the audit all in one session.

Roadmap to v1.0

Four phases to September 2026

Because C+ is durable by construction — every line written this session ships in v1.0, and every unresolved question is an optional lane rather than a blocking bet — the path forward is additive.

Phase 0 — Prototype

this session · doneshipped

Deep review (7 readers + synthesis + 4-judge panel); fork established.
Local-first layer: fs_lConfig, og_init, og_validate, og_run, og_view, og_app; site Reports tab; CI for the dormant tests; draft PR.

Phase 1 — Local core hardening

late July

Shared fs_lConfig ↔ gh_lConfig contract test suite; workr provider-registry integration.
Upstream the GroupID type fix into the gsm pipeline and retire the StandardizeResults shim.
Real per-step status.json / log.json from og_run (replaces file-presence inference); graceful metric-failure handling.
Validation UX v2; R CMD check clean; CI green on both lanes.

Phase 2 — Settings & data UX

August

Schema-driven settings forms generated from workflow meta (Threshold / Flag / Active / GroupLevel), writing YAML back.
Data-import assist: haven (sas7bdat/xpt) + CSV; light column-rename mapping stored in data-config.yaml (decision D3).
Linked static + interactive parity; the P005 / gsm.safety integration point lands here.
Local multi-snapshot story (decide the ps-NNN fate — D6).

Phase 3 — Publish & share

early September

og_publish(dir, repo) pushes the project folder to Pages via the existing gh_*/Actions lane — proving the never-run Action end-to-end.
pkgdown docs site + demo gallery.
Stretch: a shinylive/webR spike for in-browser settings editing (research bet, not gating).

Phase 4 — v1.0 release

September

Release checklist, versioning, gsm.library registration.
Keynote demo script: "the safetyGraphics author replaces his own app on the modern stack."

For @jwildfire

Decisions D1–D6

Ratify architecture C+?

Local-first core + thin Shiny shell; GitHub as the publishing lane.

Recommend yes — it won the panel 33/22/16, orphans nothing from v0.1, and is proven end-to-end in this PR.

Where does development live?

PR upstream to Gilead-BioStats/open.gismo dev, or continue on the jwildfire fork / OpenRBQM?

Fork is the working home now (SAML-blocked upstream); decide the eventual destination before Phase 1 opens hub sub-issues.

v1.0 data-mapping ambition?

gsm-convention-only + validation (cheap) · rename-map assist (middle, currently planned) · full safetyGraphics mapping UI (expensive).

Recommend the middle path — rename-map assist in data-config.yaml; the full mapping UI is the single most expensive missing piece and stays out of v1.0 unless you raise ambition.

Shiny long-term?

Keep Shiny as the local shell, or aim webR/static to replace it post-v1.0?

C+ works either way — the app is a thin editor over the folder, so this stays a deferrable call, not a foundation bet.

File hub Requirement issues now?

Open obot.roadmap Requirement issue(s) for Phases 1–4 with cross-repo sub-issues.

Every prototype piece maps one-to-one onto a requirement; recommend filing once C+ is ratified (D1).

Project Snapshots (ps-NNN)?

Give them a local story, keep them GitHub-only, or park them?

Built and tested but unused by the demo; recommend parking in the GitHub lane until the publishing story matures in Phase 2/3.
