Association Scatter Figure

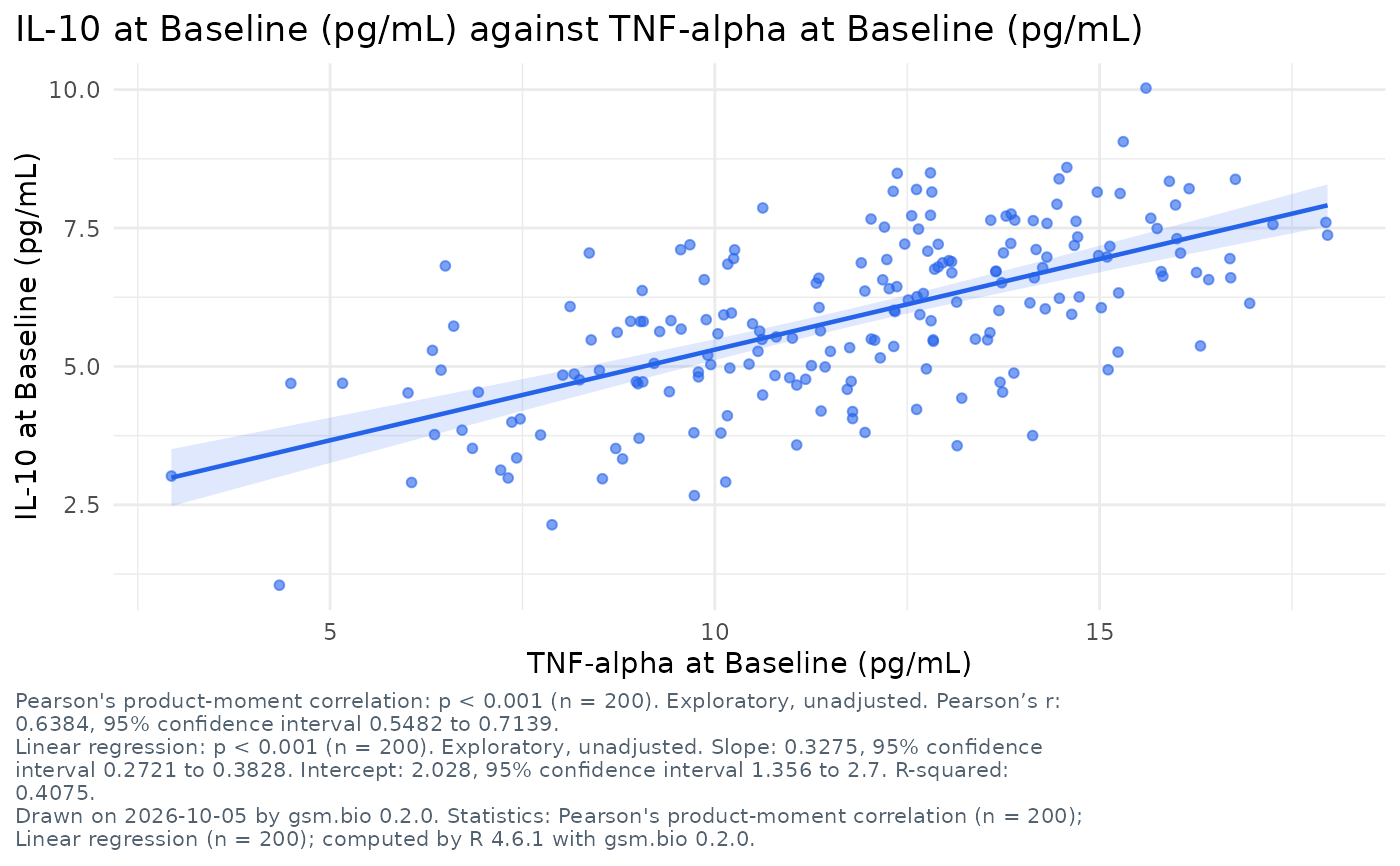

A static ggplot2 figure of the view the association scatter opens on: one point per participant with a variable on each axis, a panel per level of panel_by, R's fitted line and its band when fit asks for one, and R's correlation coefficient of each panel printed under the figure. It is the figure Widget_AssociationScatter() draws in the browser, from the same settings; the coefficient is Analyze_Correlation()'s and the line Analyze_Fit()'s, on the same rows.

Usage

Visualize_AssociationScatter(
  dfResults,
  dfParticipants = NULL,
  lSettings = list()
)

Arguments

dfResults

data.frame Long-format results, one row per participant, biomarker and visit. Column names are supplied by lSettings; the defaults expect USUBJID/TEST/STRESN/VISIT/VISITNUM/STRESU, the columns of Synthetic_Results.

dfParticipants

data.frame One row per participant, or NULL. With it the chart has filters, offers its category columns to colour and panel by and its numeric columns on either axis; it also says who the participants are. Without it a colour or a number comes from a column carried on the results rows. Default: NULL.

lSettings

list bio.viz association scatter settings, as Widget_AssociationScatter() takes them, and title, subtitle and footnotes. Default: list().

Value

A ggplot object.

Titles and footnotes

The settings title, subtitle and footnotes are text with named placeholders, as for Visualize_GroupComparison(). This figure fills {x} and {y} (the axes, as their titles read), {n} (the participants drawn), {filters}, {date} and {version}.

See also

Widget_AssociationScatter(), its interactive twin.

Other figures: Run_Specifications(), Visualize_BiomarkerScreen(), Visualize_CorrelationMatrix(), Visualize_CrossTab(), Visualize_GroupComparison(), Visualize_StratifiedSurvival()

Examples

if (requireNamespace("ggplot2", quietly = TRUE)) {
  Visualize_AssociationScatter(
    Synthetic_Results,
    Synthetic_Participants,
    lSettings = list(
      x = list(measure = "TNF-alpha", visit = "Baseline"),
      y = list(measure = "IL-10", visit = "Baseline"),
      fit = "linear",
      title = "{y} against {x}"
    )
  )
}
